Project Objective

The objective of the project was to develop, test, demonstrate and provide a Synchrophasor Data Validation and Conditioning Application (SDVCA) that can be used by WECC and owners of synchrophasor data in the Western Interconnection to validate and condition synchrophasor data. The project period was from March 2014 - December 2015 and was completed in December 2015.

Scope of Project

Deliver Synchrophasor Data Validation and Conditioning Application (SDVCA) to WECC with dual validation and conditioning capabilities that are a sequential combination of primary and secondary conditioning from two applications:

1. Model-less Phasor Measurement Unit (PMU) Data Validation and Conditioning
2. Model-based PMU Data Validation and Calibration with Linear State Estimator

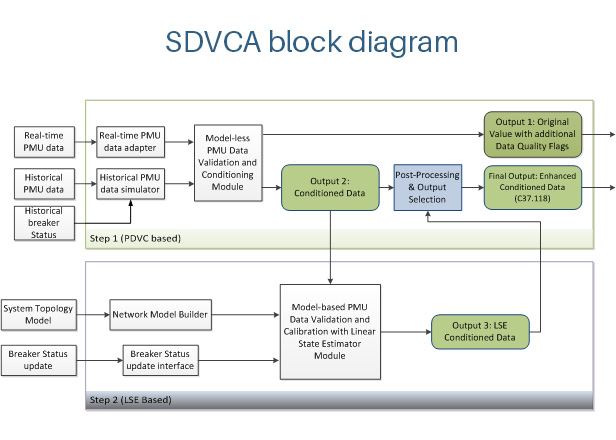

The SDVCA will validate and condition synchrophasor data so that it can be used for analysis and real-time monitoring. This is expected to improve power system reliability by providing real-time situational awareness to grid operators. Collected information is also expected to improve the accuracy of the system model used in contingency analysis. The block diagram is shown in figure below:

Benefits

The SDVCA addresses the problem of data quality. Many utilities have problems with data loss and errors, so are reluctant to use it for important applications. This application detects and indicates errors to help ensure that the delivered data is dependable. The model less approach is limited to detecting problems with data formats and measurement considerations. It doesn't have a way to check accuracy against a reference. The LSE based approach provides that capability by putting all the measurements into a structure based on their connections together. With this application the data can be both validated for accuracy and replaced by better estimates. This further assures the user of the data quality for use in other applications.
