Phasor Grid Dynamics Analyzer

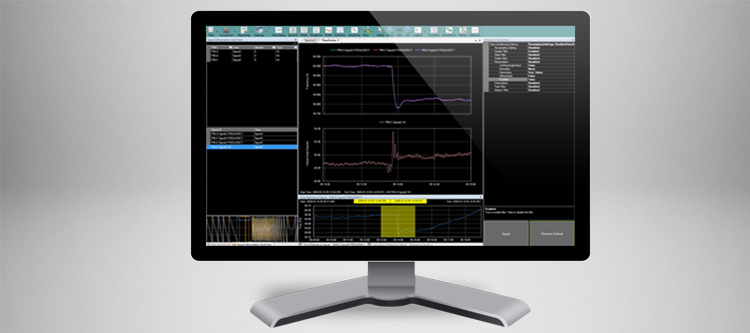

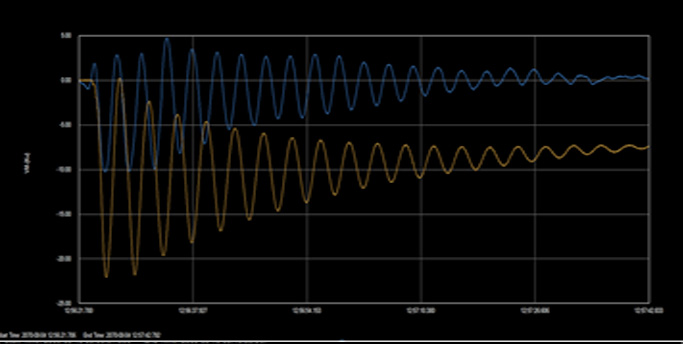

Phasor Grid Dynamics Analyzer is an offline data analytics tool enabling planners and engineers to perform detailed analysis on power system disturbance, dynamics and validate accuracy of models. PGDA uses state-of-the-art algorithms such as Prony, Yule Walker Spectral, HTLS and Matrix Pencil for oscillation detection and NERC standards to calculate frequency response following a unit trip disturbance.

Use Cases of PGDA

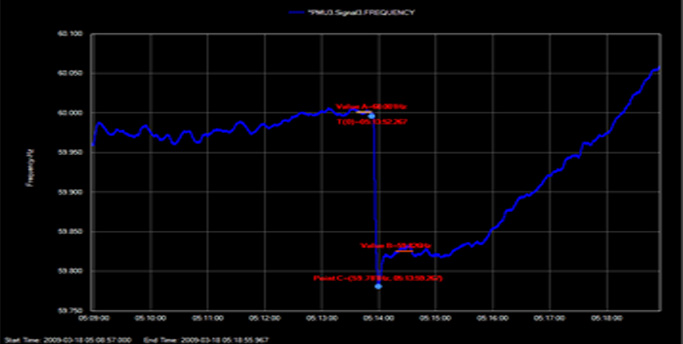

Generator Frequency Response Analysis

NERC approved technique used by engineers in ISOs and BAs to calculate Frequency Response following a unit trip event for NERC compliance. PGDA calculates

  •   Inertial Frequency Response
  •   Primary Frequency Response

Key Features

  • Multiple Data Sources and Formats

  • CSV Files, Comtrade, DST, PI Historian, RTDMS Database, PMU Data, DFR Data, Simulated Data

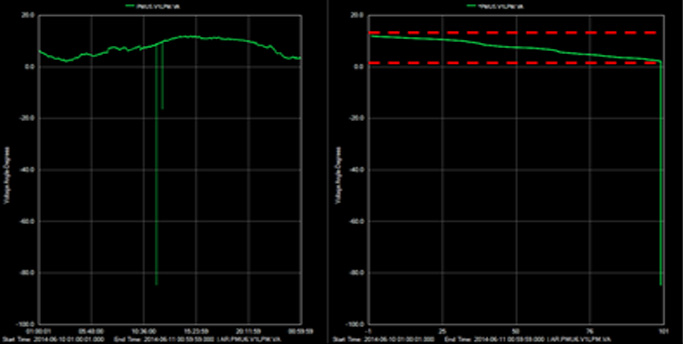

  • Bad Data Detection and Filtering

  • PGDA provides capability to detect bad data and use filters like quality filter, stale filter, outlier filter and pass filters to clean the data
  • Statistical Analysis

  • PGDA performs Statistical Analysis to identify and locate hidden events for long term datasets
  • Data Manipulation

  • PGDA Includes data manipulation options like resampling, interpolation, un-wrapping, normalizing, de-trending and differentiation
  • Reporting

  • PGDA automatically generates comprehensive reports of all the analysis performed for easy sharing and review
  • Event Templates and Pseudo Signals

  • Event PGDA can create Event Templates for repeating analysis procedures in a short amount of time. PGDA allows creating Pseudo signals from different metrics
